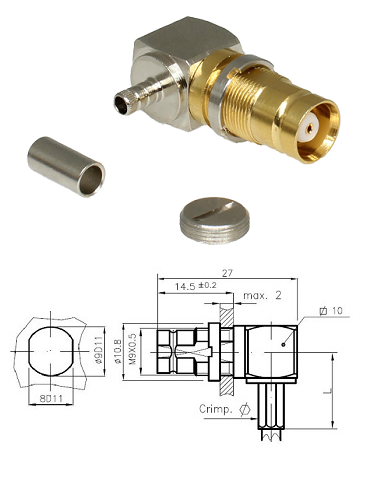

1.6/5.6 Right-Angled Bulkhead Jack ST212

(Code: 206-3612-004)
Add to Enquiry List
 1.6/5.6 Right-Angled Bulkhead Jack ST212

Materials & Plating

Bodies, Nuts, Sleeves - CW 614 N as per UNI EN 12164

Male Inner Contacts - CW 614 N as per UNI EN 12164

Female Inner Contacts -  Beryllium Copper

Resilient Auter Plug Contacts - Beryllium Copper

Insulator - PTFE (Teflon)

Electrical Characteristics

Impedance - 75 ohm

Frequency Range - 4 GHz

Contact Resistance - Centre (initial) < 4m, Outer < 2m

Contact Resistance - Centre (after conditioning) initial + 4m, Outer initial + 2m

Insulation Resistance - >10 GOhm (initial), >1 MOhm  (after Conditioning)

Mechanical Characteristics

Mating and Dimensions - as per CEI CECC EN 122 240

Durability - >500 cycles

Environmental Characteristics

Temperature Range: - 40°C to +85°C

Assembly

Pin: Solder

Outer: 3.8 mm hex
