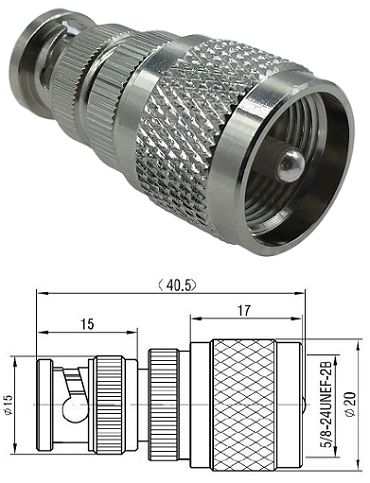

BNC Plug - UHF Plug

Materials& Plating

Shell/Body -Brass, Nickel Plated

Conductor -Brass, Silver Plated

Insulator -PTFE

ElectricalCharacteristics

Impedance -50 ohm

FrequencyRange Max. - DC - 300GHz

DielectricWithstanding Voltage - 750V(RMS)

ContactResistance - Centre ≤ 5mΩ, Outer ≤ 5mΩ

InsulationResistance - ≥ 5000mΩ

MechanicalCharacteristics

Mating -BNC: bayonet lock UHF:5/8-24UNEF-2B

Durability -≥ 500 cycles

EnvironmentalCharacteristics

TemperatureRange: - 55°C to +155°C
