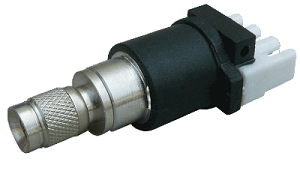

1.0/2.3 Plug Balun Krone

(Code: 260-4303-XXX)
Add to Enquiry List
1.0/2.3 Plug Balun Krone
Electrical Data
Matching Impedance 75 ohm unbalanced coaxial to 120 ohm balanced twisted pair
Bit Rates 2Mbit/s and 8Mbits as ITU-T Recommendation G.703 Line Code
Return Loss 2Mbit/s exceeds G.703 requirments (>25dB@51 to 3072kHz)
8Mbit/s as per G.703 requirements
Insertion Loss <0.16dB for 2Mbit/s service (51 to 3072MHz)
<0.3dB for 8Mbit/s service (211kHz to 12.672MHz)
Cross Talk >80dB from 51kHz to 12.672MHz between two baluns mounted 20mm apart
Pulse Shape  2Mbit/s and 8Mbit/s as per G.703
Insolation Voltage  250V DC for one minute between windings
Signal Level  2.37V nominal peak voltage for 2Mbit/s and 8Mbit/s at the coaxial end as per G.703
Material Data
Coax Connector Body Brass Alloy. Finish Cu/Ni
Coax Connector Insulator PTFE
Coax Connector Inner Contact Phosphor Bronze. Finish Cu/Ni
Coax Connector Body and Nut Brass Alloy. Finish Body Cu/Ni, Nut Cu/Ni
Outer Sleeve and Base Moulding ABS: Black
Terminal PBT: White
Coaxial Connector (75 ohm)
1.0/2.3 To IEC 169-8
Environmental Data
Working Temperature -30° C to 75° C
