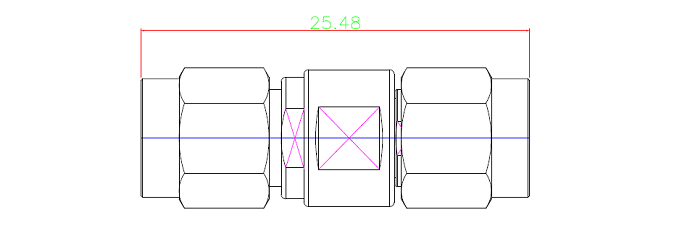

2.92 (K) Male/Male Straight Adaptor

(Code: 218-8100-103)
Add to Enquiry List
2.92 (K) Male/Male Straight AdaptorConfiguration

• 2.92 (K) Male Connector 1
• 2.92 (K) Male Connector 2
• 50 Ohm

Features

• Max VSWR of 1.2 : 1 up to 40 GHz
• 2.92 (K) Interface compliant with IEC-61169-35

Application

• General Purpose Test

Electrical Specification

Description  Minimum  Typical  Maximum  Units
 Frequency Range  DC
 40  GHz
 VSWR  1.15    1.2 : 1  -
 Operating Voltage (AC)  -    250  Vrms
 Inner Conductor DC Resistance  -    3  mOhms
 Outer Conductor Dc Resistance  -    2  mOhms
 Insertion Resistance  5000    -  mOhms

Mechanical Specification

 Description Connector 1 Connector 2
 Type  2.92 (K) Male  2.92 (K) Male
 Polarity  Standard  Standard
 Interface Specification  IEC-61169-35  IEC-61169-35
 Mating Cycle  500  500
 Hex Size  8mm  8mm
 Mating Torque  8 in-lbs  8 in-lbs
 Coupling Proof Torque, Min  5 in-lbs  5 in-lbs

Material Specification

   Connector 1  Connector 2
 Description  Material  Plating  Material  Plating
 Type  2.92 (K) Male  -  2.92 (K) Male  -
 Contact  Beryllium Copper  Gold Beryllium Copper  Gold
 Insulation  PEI  -  PEI  -
 Outer Conductor  -  -  -  -
 Body  Stainless Steel  Passivated  Stainless Steel  Passivated
 Gasket  -  -  -  -
 Coupling Nut  Stainless Steel  Passivated  Stainless Steel  Passivated
