This range of interchangeable crimp die sets are for the PCC-5310 frame. The user can cover several coaxial connectors in just one tool frame.
- High strength,through hardened alloy steel construction
-
Full cycle crimp mechanism to ensure consistent, reliable crimp
- Ratchet release mechanism to clear miscrimps and obstructions
- Precision eccentric adjustment for consistent performance and ability tocalibrate
-
Each tool has a unique serial number for traceability
-
The part number is a reference to the die set without frame.
Technical Data
Length: 38 mm/1.5
Width: 21 mm/0.83"
Height: 8 mm/0.31"
Weight: 30 gr/0.07 lb
Connector: Coaxial connector
Life span, cycles: 50,00
| Stock Code |
Description |
Model Number |
Inner Hex (mm) |
Outer Hex (mm) |
| 901-0061-007 |
6A Die Set |
PCC 5310/01 VA |
1.46 |
2.67 |
| 901-0054-007 |
6A Die Set RG179/RA8000 |
PCC 5310/02 VB |
1.46 |
3.25 |
| 901-0055-007 |
6A Die Set BT3002 |
PCC 5310/03 VC |
1.46 |
4.52 |
| -- |
6A Die Set |
PCC 5310/04 VD |
1.46 |
5.41 |
| -- |
6A Die Set |
PCC 5310/05 VE |
1.46 |
6.48 |
| 901-0088-007 |
6A Die Set |
VG |
1.46 |
8.23 |
| 901-0052-007 |
6A Die Set BT2002 |
PCC 5310/06 VQ |
1.46 |
5.18 |
| 901-0053-007 |
6A Die Set BT2003 |
PCC 5310/07 VR |
1.46 |
6.81 |
| -- |
6A Die Set |
PCC 5310/08 WA |
1.69 |
2.67 |
| 901-0062-007 |
6A Die Set |
PCC 5310/09 WB |
1.69 |
3.25 |
| 901-0059-007 |
6A Die Set |
PCC 5310/10 WC |
1.69 |
4.52 |
| 901-0057-007 |
6A Die Set |
PCC 5310/11 WD |
1.69 |
5.41 |
| 901-0083-007 |
6A Die Set |
PCC 5310/12 WE |
1.69 |
6.48 |
| 901-0051-007 |
6A Die Set |
WF |
1.69 |
7.01 |
| 901-0087-007 |
6A Die Set |
WG |
1.69 |
8.23 |
| 901-0064-007 |
6A Die Set |
B |
-- |
3.25 |
| 901-0056-007 |
6A Die Set |
-- |
-- |
4.33 |
| 901-0085-007 |
6A Die Set |
-- |
2.57 |
10.90 |
| -- |
6A Die Set |
PCC 5310/3,80 |
-- |
3.80 |

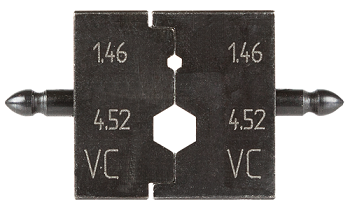

Image shown is PCC 5310/03 VC
|
