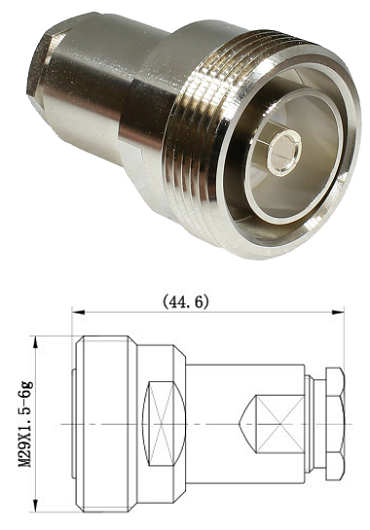

7/16 Clamp Jack RG8, LMR400

Materials & Plating

Body - Brass, Nickel or Tri-alloy Plated

Conductor - Phosphor Bronze or Brass, Gold Plated

Insulator - PTFE

Electrical Characteristics

Impedance - 50 ohm

Frequency Range Max. - 0-3GHz

VSWR - ≤  1.15

Dielectric Withstanding Voltage - 4000V (RMS), 50Hz,

Contact Resistance - Centre ≤ 1.5mΩ, Outer ≤ 0.4mΩ

Insulation Resistance - ≥ 10000mΩ

Mechanical Characteristics

Durability - ≥ 500 cycles

Environmental Characteristics

Temperature Range: - 40°C to +85°C
