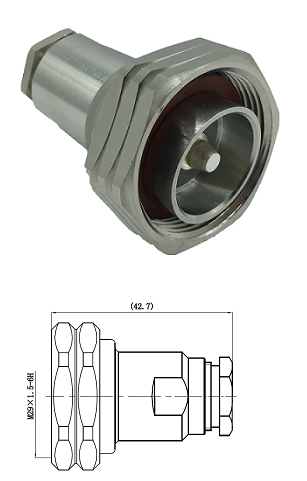

7/16 Clamp Plug RG213

Materials & Plating

Body - Brass, Tri-alloy Plated

Insulator - PTFE

Conductor - Brass, Gold Plated

Others - Brass, Nickel Plated

Electrical Characteristics

Impedance - 50 ohm

Frequency Range Max. - DC - 2.5GHz

VSWR - ≤ 1.15

Dielectric Withstanding Voltage - 2500V (RMS)

Contact Resistance - Centre ≤ 1.5mΩ, Outer ≤ 0.4mΩ

Insulation Resistance - ≥ 5000mΩ

Mechanical Characteristics

Durability - ≥ 500 cycles

Environmental Characteristics

Temperature Range: - 40°C to +85°C
