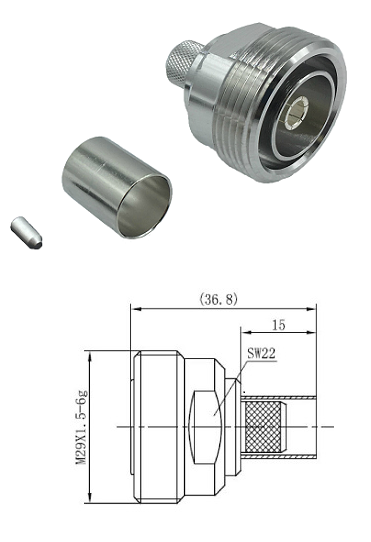

7/16 Crimp Jack RG214

Materials & Plating

Body - Brass, Tri-alloy

Insulator - PTFE

Center Conductor - Phosphor Bronze, Gold Plated



Electrical Characteristics

Characteristic Impedance - 50 ohm

Frequency Range Max. - DC - 2.5GHz

VSWR -  ≤ 1.15 (0-3)GHz

Dielectric Resistance - ≥ 10000mΩ

Contact Resistance - Centre ≤ 1.4mΩ, Outer ≤  1.5mΩ



Mechanical Characteristics

Durability - ≥ 500  mating cycles



Assembly

Pin: Solder

Outer: 10.9 mm hex
