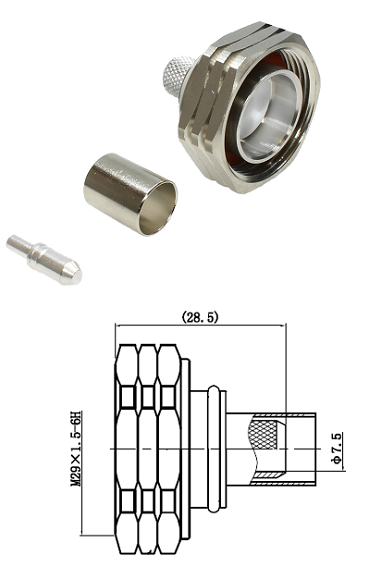

7/16 Crimp Plug RG213

Materials & Plating

Body - Brass, Tri-alloy Plated

Insulator - PTFE

Center Conductor - Brass, Gold Plated

Other - Brass, Nickel Plated



Electrical Characteristics

CharacteristicImpedance - 50 ohm

Frequency Range Max. - DC - 2.5GHz

VSWR - ≤ 1.15

Dielectric Withstanding Voltage - ≥2500V (RMS)

Contact Resistance - Centre ≤ 1.5mΩ, Outer ≤  0.4mΩ

Dielectric Resistance - ≥ 5000mΩ



Mechanical Characteristics

Durability - ≥ 500 cycles



Environmental Characteristics

Temperature Range: - 40°C to +85°C



Assembly

Pin: Solder

Outer: 10.9 mm hex
