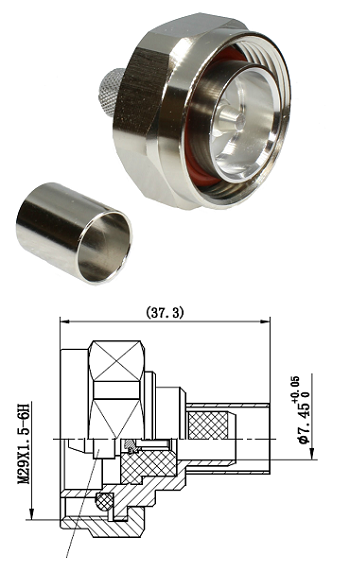

7/16 Crimp Plug RG214

Materials & Plating

Body - Brass, Tri-alloy Plated

Insulator - PTFE

Center Conductor - Brass, Gold Plated

Other - Brass, Nickel Plated



Electrical Characteristics

Characteristic Impedance - 50 ohm

Frequency Range Max. - DC - 3GHz

VSWR -  ≤ 1.15

Dielectric Withstanding Voltage - ≥ 4000V (RMS)

Insulation Resistance - ≥ 10000mΩ

Contact Resistance - Centre ≤ 1.5mΩ, Outer ≤  0.4mΩ



Mechanical Characteristics

Durability - ≥ 500  mating cycles



Environmental Characteristics

Temperature Range: - 45°C to +85°C



Assembly

Pin: Solder

Outer: 10.9 mm hex
