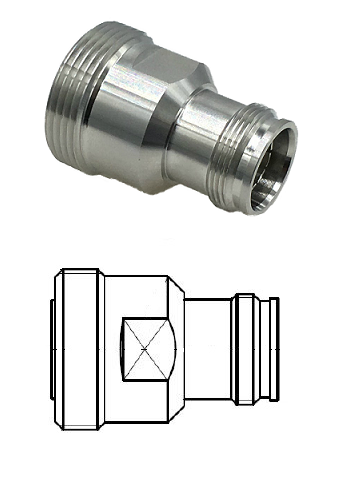

7/16 Female - 4.3/10 Female Adaptor

Materials & Plating

Shell/Body - Brass, ALLOY3

Conductor - Phosphor Bronze, Silver Plated

Insulator - PTFE

Electrical Characteristics

Impedance - 50 ohm

Frequency Range Max. - DC - 6GHz

Dielectric Withstanding Voltage - 2500V (RMS)

Contact Resistance - Centre ≤ 1mΩ, Outer ≤1.5mΩ

Insulation Resistance - ≥ 5000mΩ

PIM - 165dBc

Mechanical Characteristics

Mating - 4.3/10:M20X1-6g 7/16:M29x1.5-6g

Durability - ≥ 500 cycles

Environmental Characteristics

Temperature Range: - 55°C to +155°C
