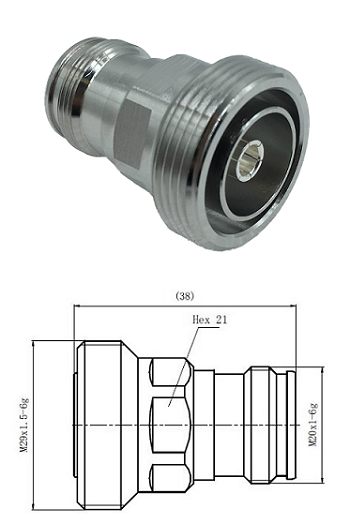

7/16 Female - 4.3/10 Female Adaptor

Materials & Plating

Body - Brass, Try-Alloy

Centre Conductor - Phospor Bronze, Silver Plated

Insulator - PTFE

Electrical Characteristics

Impedance Impedance - 50 ohm

Frequency Range Max. - DC - 6GHz

Dielectric Withstanding Voltage - 2500V RMS, 50Hz, at sea level

VSWR - ≤1.20

Insertion Loss - ≤0.05*√f

PIM(@2-tonex20w) - ≤-160dBc
Dielectric Resistance - ≥5000M Ω

Mechanical Characteristics

Durability - ≥ 500 cycles

Environmental Characteristics

Temperature Range: - 40°C to +85°C
Waterproof - IP67
