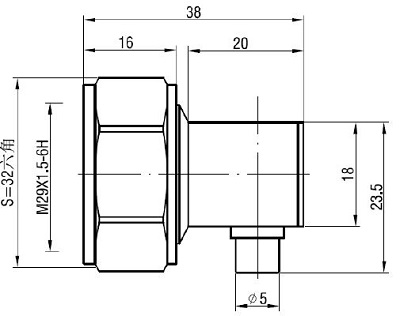

7/16 Right-Angled Solder Plug RG402 / 0.141 (Semi-Rigid)

Materials & Plating

Shell/Body - Brass, Alloy3

Conductor - Brass, Silver Plated

Insulator - PTFE

Nut - Brass, Nickel Plated

Electrical Characteristics

Impedance - 50 ohm

Frequency Range Max. - DC - 3GHz

Dielectric Withstanding Voltage - 4000V (RMS)

Contact Resistance - Centre ≤ 0.4mΩ, Outer ≤1.5mΩ

Insulation Resistance - ≥ 1000mΩ

Mechanical Characteristics

Mating - M29x1.5-6H

Durability - ≥ 500 cycles

Environmental Characteristics

Temperature Range: - 55°C to +155°C

Assembly
