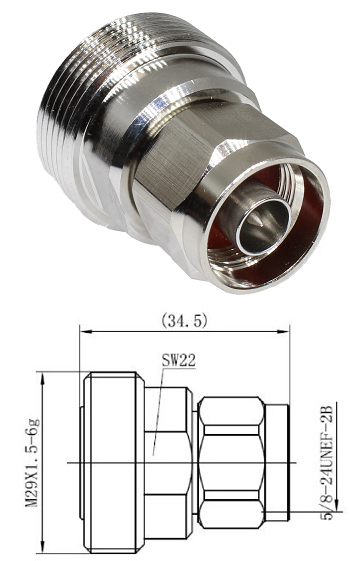

Adaptor 7/16 Female to N Male (Hex)

(Code: 290-5070-088)
Add to Enquiry List
Adaptor 7/16 Female to N Male (Hex)

Materials & Plating

Body - Brass, Try-Alloy

Insulator - PTFE

Center conductor - Phosphor Bronze, Gold Plated

Electrical Characteristics

Characteristic Impedance- 50Ω

Frequency Range Max. - DC -3GHz

VSWR - ≤1.10

Dielectric Withstanding Voltage - ≤4.0kV rms, 50Hz

Dielectric Resistance - ≥5000MΩ

Contact Resistance -Outer contact≤1.5mΩ; Center Contact≤1.0mΩ

Insertion Loss - 0.1dB

PIM3 - ≤-160dBc

Mechanical Characteristics

Durability - ≥ 500 cycles

Environmental Characteristics

Temperature Range: --40℃~+85℃

Waterprof Grade - IP67
