BNC Plug - IDC

(Code: 260-0801-006)
Speed :
Wire Size :
Add to Enquiry List

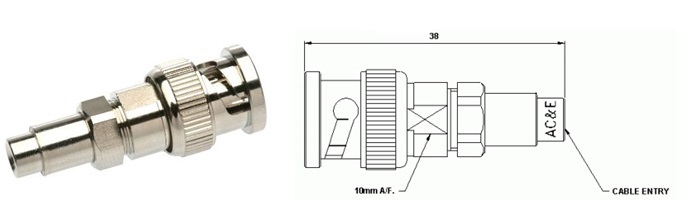

BNC Plug - IDC

Model: B13008065 (AC&E) - Specification

Matching Impedance

75 ohm unbalanced coaxial to 120 ohm balanced twisted pair

Bit Rates

2Mbit/s and 8Mbit/s as ITU-T Recommendation G.703 Line Code

Return Loss

2Mbit/s exceeds G.703 requirements  (>25dB @ 51-3072kHz) 8Mbit/s as per G.703  requirements

Insertion Loss

<0.16dB for 2Mbit/s service (51-3072kHz) <0.3dB for 8Mbit/s service (211kHz- 12.672MHz

Cross Talk >80dB from 51kHz to 12.672MHz between 2 baluns mounted 20mm apart
Pulse Shape
2Mbit/s, 8Mbit/s as per G.703
Signal Levels

2.37V nominal peak voltage for 2Mbit/s and 8Mbit/s at the coaxial end as per G.703

Isolation Voltage
250VDC for 1 minute between windings
