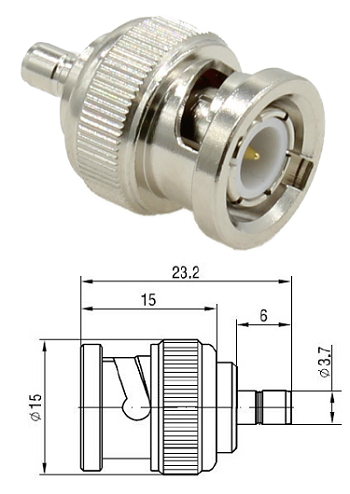

BNC Plug - SMB Jack (male pin) Adaptor

Materials & Plating

Shell/Body - Brass, Nickel Plated

Conductor - Beryllium, Gold Plated

Insulator - PTFE

Electrical Characteristics

Impedance - 50 ohm

Frequency Range Max. - DC - 3GHz

Dielectric Withstanding Voltage - 1000V (RMS)

Contact Resistance - Centre ≤ 6mΩ, Outer ≤ 1mΩ

Insulation Resistance - ≥ 1000mΩ

Mechanical Characteristics

Mating - bayonet lock

Durability - ≥ 500 cycles

Environmental Characteristics

Temperature Range: - 55°C to +155°C
