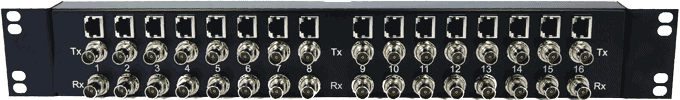

BNC/RJ45 19” Balun Panel Front Mount 16E1

(Code: 270-4016-016)
Add to Enquiry List
BNC/RJ45 19” Balun Panel Front Mount 16E1Description

These E1 Coax to RJ45 Impedance Matching Balun Panels provide 75-120 ohm coax to twisted pair conversion for E1 channels (Tx and Rx). The panel conforms to ITU-T G.703, matching the impedance and signal characteristics of up to 48 unbalanced 75 ohm coax connections with balanced 120 ohm twisted pair connections.

Only 1U high, the 19 inch rack mount balun panel is available with BNC, 1.0/2.3, 1.6/5.6 (Small Siemens), Type 43 (BT43, SMZ) , SMB or Ericsson M4 coax connectors. Mounted with the coax + RJ45 connectors on the front.


 Features
  • Speed: 2/8mb
  • G703 Balun
  • 75 ohm - 120 ohm
  • Coax - RJ45
  • E1 and E2
  • 19 inch
  • Rack Mount Kit included
  • Coax + RJ45 on the front
  • Modular Construction
  • Up to 16 Dual Port Baluns
  • Rear Of Panel
