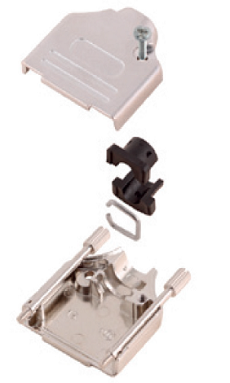

D-Sub Metal Hood, Nickel, Screw Together Hoods, C Clip

(Code: 310-DTZKxx-K)
 Add to Enquiry List
D-Sub Metal Hood, Nickel, Screw Together Hoods, C Clip
Features
• Available in size 9-15-25-37
• Excellent EMI Shielding
• Re-openable
• Strain relief inserts ensure a secure termination
• Full Metal  Jackscrew as standard
• Plastic Cap Jackscrew on request
Technical Specification
 Material  Zinc, Nickel Plated
 Operating Temperature -40°C to +120°C
 Cable Entry Top
 Thumbscrews UNC 4-40 (standard)
M2.5, M2.6 or M3.0 on request
 Cable Diameter  From 4.3 mm Up to 13.0 mm

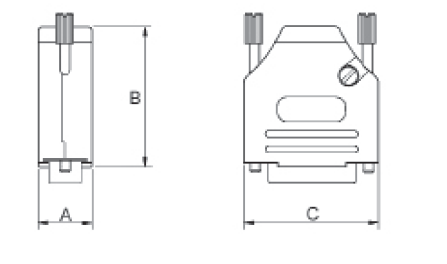

 Stock Code  Size  Dim A  Dim B  Dim C
 310-DTZK09-K  9-way  15,0 39,9  31,2
 310-DTZK15-K  15-way  15,0 41,5  39,5
 310-DTZK25-K  25-way  15,0 48,6  53,4
 310-DTZK37-K
  37-way  15,0 53,6  69,7
