D-Sub Plastic Cover, Light Grey, Top, short jackscrews

(Code: CCOVxx-SC-LG)
 Add to Enquiry List
D-Sub Plastic Cover, Light Grey, Top, short jackscrews
Features
• Available in size 9-15-25-37-50
• Suitable for any common Sub-D connector
• Short Jackscrews
• Re-openable
• Available in two colour: Black & Light Grey
• Also available in Metalized Version
Technical Specification
 Material  UL-Recognized Plastic Material
 Operating Temperature -55°C to +110°C
 Cable Entry Top
 Thumbscrews UNC 4-40

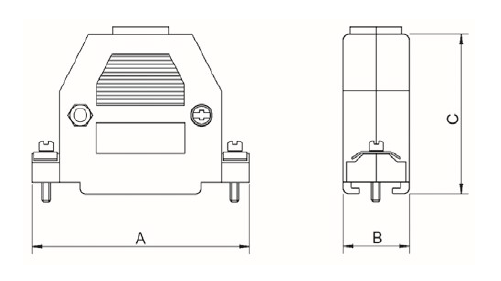

 Stock Code  Size  A  B  C  Cable O.D
 310-CCOV09SC-LG  9-way  31,0 16,0  40,2  Up to 7,0mm
 310-CCOV15SC-LG  15-way  39,6 17,4  38,0  Up to 10,0mm
 310-CCOV25SC-LG  25-way  55,0 16,5  44,5  Up to 11,1mm
 310-CCOV37SC-LG
  37-way  69,0  24,0  52,5  Up to 13,8mm
 310-CCOV50SC-LG  50-way  69,5 19,5  44,5  Up to 14,0mm
