Expandable Braided Sleeve

(Code: CEBSXXB)
 Add to Enquiry List

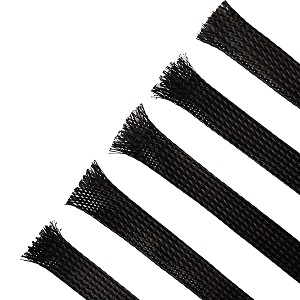

Expandable Braided Sleeve


Our high quality expandable braided sleeve is flame-retardant and halogen-free. It offers durable abrasion resistance in a wide range of industrial applications. The open weave structure allows an easy installation n a bundle of hoses or cables. Totally expanded sleeve can reach at least 1.5 times the initial dimension. It is ideal for application in wire harnesses,machinery, railway and general manufacturing industries where wire and cable are required to have a robust and durable protection.


 Technical Specification
 Material  Polyester
 Standard  UL Approved
 Working Temp

-50ºC to +150ºC
 ROHS Compliant  Yes
 Zero Halogen  Yes
 Flammability  VW-1


Expandable Braided Sleeve
Stock Code Size Expandable Range Reel Length

CEBS6-B

 6mm
 Min 3mm Max 9mm 100M

CEBS8-B

 8mm
 Min 5mm Max 16mm 10M

CEBS12-B

 12mm
 Min 8mm
 Max 24mm 50M
CEBS14-B
 14mm
 Min 9mm
 Max 26mm 50M
CEBS16B
 16mm
 Min 10mm
 Max 27mm 50M
CEBS20-B
 20mm
 Min 14mm
 Max 30mm 50mm
CEBS25-B
 25mm
 Min 18mm
 Max 35mm 50M
CEBS32-B 32mm Min 20mm Max 50mm 50M
CEBS38-B 38mm Min 30mm Max 60mm 50M
CEBS50-B 50mm Min 40mm Max 80mm 25M
