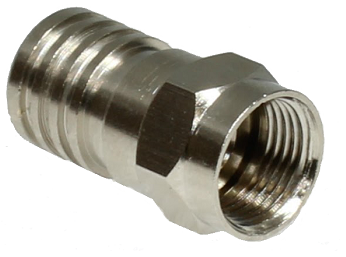

F Type Crimp Plug RG6, CT100

Description

Thick-wall crimp F-connector for WF100 cable

Features

High quality nickel plated brass connector

Superior connectivity and grip through thick walled journals

Quicker fitting with internal chamber design to smooth screening tape on coaxial cable

Suitable for WF100 coaxial cable

Electrical Characteristics

Cable Sheath OD - 6.3 to 7.0 mm

Dielectric Size - 4.5 to 5.0 mm

Crimp Jaw Size - 0.368 (9.35 mm)

Depth of Nut - 6 mm

All tests performed using instruments calibrated in accordance to our ISO:9001 certification. Further technical specification and installation instructions can be obtained upon request.
