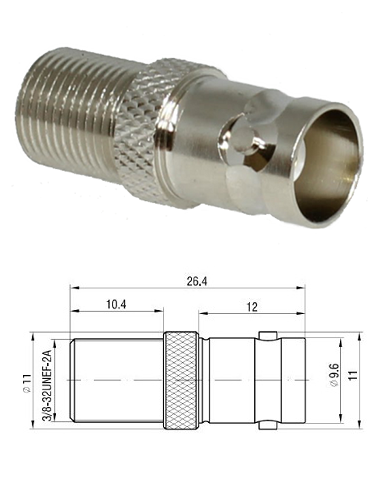

F Type Female - BNC Female Adaptor

Materials & Plating

Shell/Body - Brass, Nickel Plated

Conductor - Brass, Phosphor Bronze, Gold Plated

Insulator - ABS

Electrical Characteristics

Impedance - 75 ohm

Frequency Range Max. - DC - 1GHz

Dielectric Withstanding Voltage - 500V (RMS)

Contact Resistance - Centre ≤ 10mΩ, Outer ≤ 5mΩ

Insulation Resistance - ≥ 1000mΩ

Mechanical Characteristics

Mating -  BNC: bayonet lock F: 3/8-32UNEF-2A

Durability - ≥ 500 cycles

Environmental Characteristics

Temperature Range: -  40°C to +85°C
