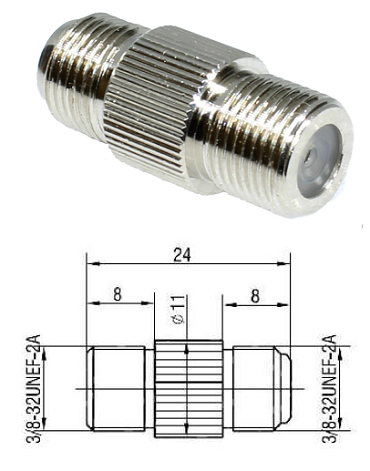

F Type Jack/Jack Adaptor (Brass)

Materials & Plating

Shell/Body - Brass, Nickel Plated

Conductor  -, Phosphor Bronze, Gold  Plated

Insulator - ABS

Electrical Characteristics

Impedance - 75 ohm

Frequency Range Max. - DC - 1.3GHz

Dielectric Withstanding Voltage - 500V (RMS)

Contact Resistance - Centre ≤ 10mΩ, Outer ≤5mΩ

Insulation Resistance - ≥ 1000mΩ

Mechanical Characteristics

Mating -   3/8-32UNEF-2A

Durability - ≥ 500 cycles

Environmental Characteristics

Temperature Range: - 40°C to +85°C
