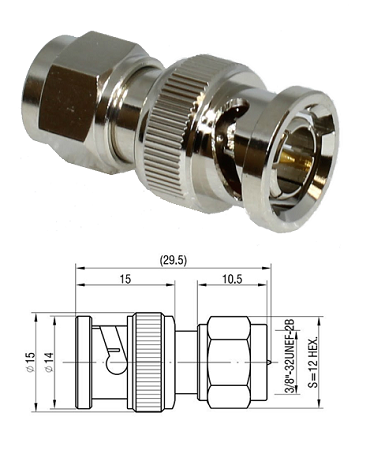

F Type Male - BNC Male Adaptor

(Code: 290-5108-070)
 Add to Enquiry List
F Type Male - BNC Male Adaptor

Materials & Plating

Shell/Body - Brass, N ickel Plated

Conductor - Brass, Gold Plated

Insulator - Teflon

Coupling Nut - Brass, Nickel Plated

Nut - Brass, Nickel Plated

Electrical Characteristics

Impedance - 75 ohm

Frequency Range Max. - DC - 1GHz

Dielectric Withstanding Voltage - 500V (RMS)

Contact Resistance - Centre ≤ 10mΩ, Outer ≤ 5mΩ

Insulation Resistance - ≥ 1000mΩ

Mechanical Characteristics

Mating -  BNC: bayonet lock F: 3/8-32UNEF-2A

Durability - ≥ 500 cycles

Environmental Characteristics

Temperature Range: -  40°C to +85°C
