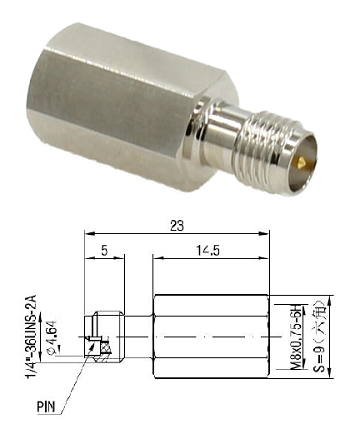

FME Male to RP-SMA Female Adaptor

Materials & Plating

Shell/Body - Brass, Nickel Plated

Conductor - Brass, Gold Plated

Insulator - PTFE

Electrical Characteristics

Impedance - 50 ohm

Frequency Range Max. - DC - 3GHz

Dielectric Withstanding Voltage - 1000V (RMS)

Contact Resistance - Centre ≤ 10mΩ, Outer ≤ 5mΩ

Insulation Resistance - ≥ 5000mΩ

Mechanical Characteristics

Mating -  SMA:1/4-36UNS-2A FME:M8x0.75-6H

Durability - ≥ 500 cycles

Environmental Characteristics

Temperature Range: - 40°C to +155°C
