FME Male to SMA Female Adaptor

(Code: 290-5051N-070)
 Add to Enquiry List

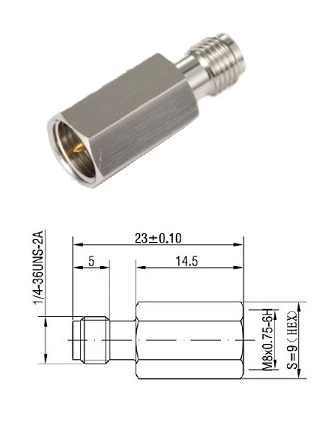

FME Male to SMA Female Adaptor
Materials & Plating
Shell/Body - Brass, Nickel Plated
Conductor - Beryllium Copper, Gold Plated
Insulator - PTFE

Electrical Characteristics
Impedance - 50 ohm
Frequency Range Max. - DC - 3GHz
Dielectric Withstanding Voltage - 1000V (RMS)
Contact Resistance - Centre 10mΩ, Outer 5mΩ
Insulation Resistance - 5000mΩ

Mechanical Characteristics
Mating - SMA:1/4-36UNS-2A FME:M8x0.75-6H
Durability - 500 cycles

Environmental Characteristics
Temperature Range: - 40°C to +155°C
