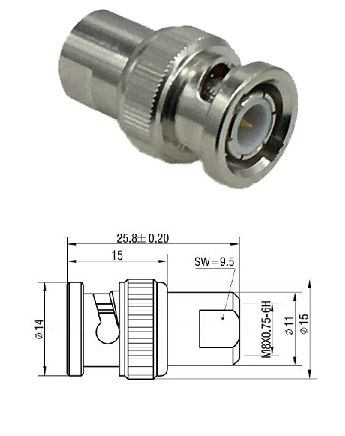

FME Plug to BNC Plug Adaptor

Materials & Plating

Shell/Body - Brass, Nickel Plated

Conductor - Brass, Gold Plated

Insulator - PTFE

UNT - Brass, Nickel Plated

Electrical Characteristics

Impedance - 50 ohm

Frequency Range Max. - DC - 1GHz

Dielectric Withstanding Voltage - 500V (RMS)

Contact Resistance - Centre ≤ 10mΩ, Outer ≤5mΩ

Insulation Resistance - ≥ 5000mΩ

Mechanical Characteristics

Mating - BNC: boyonet lock FME: M8x0.75-6H

Durability - ≥ 500 cycles

Environmental Characteristics

Temperature Range: - 40°C to +85°C
