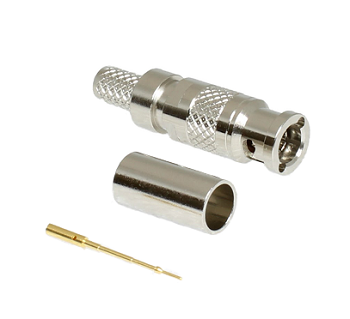

HDBNC HDTV 12G SDI Crimp Plug, Belden 1855A, Belden 4855R, Belden 1855ENH, Image 360

Material & Plating

Dielectric - PTFE

Ferrule - Brass, Nickel Plated

Coupling Nut - Brass, Nickel Plated

Pin - Beryllium Copper, Gold Plated

Body - Brass, Nickel Plated

Electrical Characteristics

Impedance - 75 ohms

Max. Frequency - 12 GHz

Working Voltage - 500 Volts RMS Maximum

Dielectric Withstanding - 500 Volts RMS Maximum

Mechanical Characteristics

Fixing Method - Crimp

Durability - 500 mating cycles

Cable Retention - Equal to breaking strain of cable

Environmental Characteristics

RoHS Compliant - Yes

Temperature Range: -65 to +165 degrees C

Tooling

Crimp Hex. Size: 5.41mm Hex., 1.07mm Square
