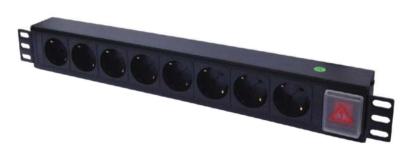

Description
• Horizontal 1.5U and vertical option
• French / Benelux type E sockets
• German Schuko type F sockets
• Shrouded switch with switch cover
• 3-metre 1.5mm lead to universal Schuko plug (French and German as above)
Multinational business often means repeated IT infrastructure in different overseas locations, and so socket types other than standard UK or IEC sockets are often used.
Standard and custom Schuko or French socket PDU’s in vertical or horizontal styles. Various plug options are available on request.
|
 |
 |
The German schuko socket is earthed from
the side, whereas the French socket has an
integrated earth pin. |
The PDUs are fitted with double pole
switches, which are both shrouded and
protected by a switch cover. |
Overseas PDUs are fitted with CEE7/7
plugs as standard, which can be used with
both French and German sockets
interchangeably. |
PDU Options
|
|
|
|
IEC C14 plug
IEC 60320(320) |
IEC C20 plug
IEC 60320(320) |
16A commando plug
IEC 60309(309) |
13A Plug
BS1363
|
Specifications
| Weight of PDU |
1.1kg – 1.15kg |
| Net length of PDU |
490mm |
| Net width of PDU |
60mm |
| Net depth of PDU |
45mm |
| Shipping length of PDU |
520mm |
| Shipping Width of PDU |
132mm |
| Shipping Depth of PDU |
75mm |
| Shipping Weight of PDU |
1.3kg – 1.35kg |
| PDU max power |
3250W |
| Output rating |
13A |
Overall rating
|
6A
|
Input Frequency
|
50/60Hz
|
Acceptable Input Voltage
|
250VAC
|
|
