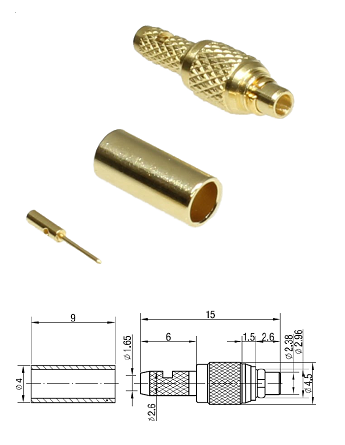

MMCX Plug RG174, RG316

Materials & Plating

Shell/Body - Brass, Gold Plated

Conductor - Phosphor Bronze, Gold Plated

Insulator - PTFE

Electrical Characteristics

Impedance - 50 ohm

Frequency Range Max. - DC - 3GHz

Dielectric Withstanding Voltage - 500V (RMS)

Contact Resistance - Centre ≤ 5mΩ, Outer ≤ 2.5mΩ

Insulation Resistance - ≥ 1000mΩ

Mechanical Characteristics

Mating - Snap-on coupling

Durability - ≥500 cycle

Environmental Characteristics

Temperature Range: -  55°C to +155°C

Assembly

Pin: Solder

Outer: 3.25 mm hex
