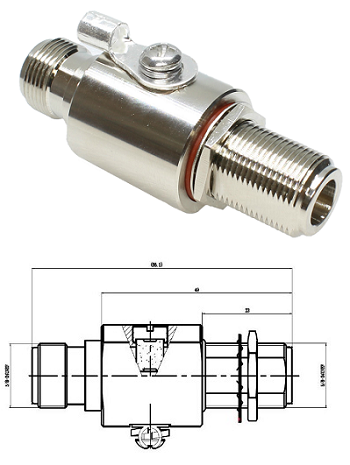

N Female/Female B/H GDT Lighting Arrester (DC-3GHz) 230v

(Code: 220-KKY-1-01)
Add to Enquiry List
N Female/Female B/H GDT Lighting Arrester (DC-3GHz) 230v

Materials & Plating

Shell/Body - Brass rods, Nickel Plated

Insulator - PTFE

Sealing Element - Silicon Rubber

Center conductor - Brass rods/Bronze Bar, Gold Plated

Electrical Characteristics

Characteristic Impedance - 50 ohm

Frequency Range - DC - 3GHz

VSWR - ≤1.18

Insertion loss - ≤0.5dB

Dielectric Resistance - ≥5000MΩ

Contact Resistance - Center Contact ≤ 1.0mΩ, Outer Contact ≤ 1.0mΩ

Peak Discharge Current(KA) -10/20

Initial Discharge Voltage(V) - 230

Peak Power(W) - 200
