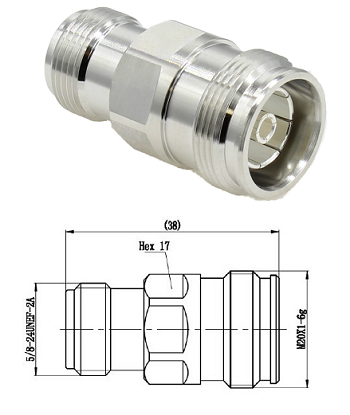

N Female to 4.3/10 Female Adaptor

(Code: 290-5146-088)
Add to Enquiry List
N Female to 4.3/10 Female Adaptor

Materials & Plating

Body - Brass, Tri-Alloy

Insulator - PTFE

Center Conductor - Phosphor Bronze, Gold Plated

Electrical Characteristics

Impedance - 50 ohm

Frequency Range - DC - 6GHz

VSWR - ≤1.10

Dielectric Withstanding Voltage - 2500V(RMS) 50Hz, at sea level

Dielectric Resistance -  ≥ 5000mΩ

Contact Resistance - Centre ≤ 1mΩ, Outer ≤ 1.0mΩ

Insertion Loss - ≤ 0.1dB

PIM3 -  ≤ -160dB

Mechanical Characteristics

Durability - Mating cycle ≥ 100 cycles

Environmental Characteristics

Temperature Range: - 40°C to +85°C
