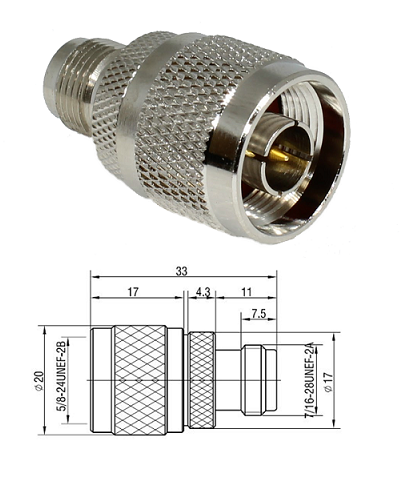

N Male - TNC-RP Female Adaptor

Materials & Plating

Shell/Body - Brass, Nickel Plated

Conductor - Brass, Gold Plated

Insulator - PTFE

Electrical Characteristics

Impedance - 50ohm

Frequency Range Max. - DC - 3GHz

Dielectric Withstanding Voltage - 1500V (RMS)

Contact Resistance - Centre ≤ 10mΩ, Outer ≤ 2.5mΩ

Insulation Resistance - ≥ 5000mΩ

Mechanical Characteristics

Mating -   N: 5/8-24UNEF-2B, TNC: 7/16-28UNEF-2A

Durability - ≥ 500 cycles

Environmental Characteristics

Temperature Range: -   55°C to +155°C
