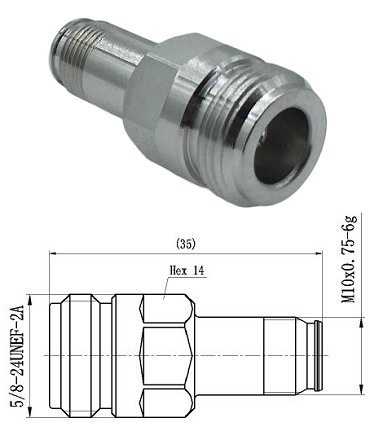

N Type Female to NEX10 Female Adapter

Materials & Plating

Body - Brass, Tri-Alloy

Insulator - PTFE

Centre conductor - Bronze, Silver Plated

Electrical Characteristics

Characteristic Impedance- 50 ohm

Frequency Range - DC-3GHz

VSWR - ≤1.10

PIM (@2-tonex20w) - ≤155dBC

Insertion Loss - ≤0.05*√fdB

Dielectric Withstanding Voltage- ≥750VRMS, 50Hz,at sea level

Dielectric Resistance - ≥5000M Ω

Contact Resistance - Outer contact ≤2.5mΩ; Center Contact ≤3.0mΩ

Mechanical Characteristics

Durability - ≥ 100 Mating cycles

Environmental Characteristics

Temperature Range: -40℃～+85℃

Rosh-compliance - Full ROHS compliance

Salt-fog test - 96h
