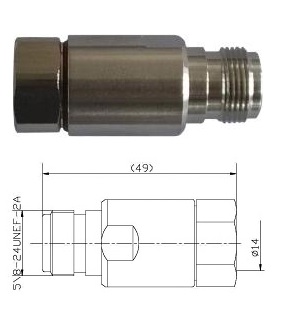

N Type Straight Jack For Superflexible 1/2” Cable

(Code: 220-N-K12S)
Add to Enquiry List
N Type Straight Jack For Superflexible 1/2” Cable

Materials & Plating

Shell/Body - Brass, Nickel Plated

Contact Pin - Brass Phosphor Bronze, Silver Plated

Insulator - PTFE


Electrical Characteristics

Impedance - 50 ohm

Frequency Range Max. - DC - 3GHz

VSWR - ≤1.15

Dielectric Withstanding Voltage - ≥2500V RMS,50Hz, sea level

Dielectric Resistance -  ≥5000MΩ

Contact Resistance Center Contact  ≤1.0mΩ, Outer Contact  ≤0.25mΩ


Mechanical Characteristics

Durability Mating- ≥ 500 cycles


Environmental Characteristics

Temperature Range: - 40°C to +85°C
