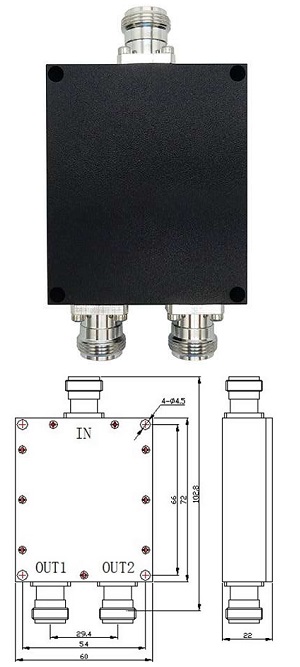

Power Splitter Low PIM (698-2700MHz 50W, N-Female 2-Way)

(Code: YFPS-727-02-NF)
 Add to Enquiry List
Power Splitter Low PIM (698-2700MHz 50W, N-Female 2-Way)

 Product Features
 Wide Frequency Band
 Low Insertion Loss
 Low VSWR
 High Isolation

 Widely used in IBS & DAS
Guaranteed one year standard


 RF Characteristics
 Input Ports  2-Way
 Split Ports (dB)  3.0
 Insertion Loss  ≧0.5
 Isolation (dB)  ≧20
 VSWR  ≤1.25
 PIM3  -155dBc@*43dBc
 Average Power (W)  50
 RF Connector  N-Female
 Working Temp (deg)  30~+65
 Relative Humidity  5%-95%
 Weight (kg)  0.25
 IP Grade  IP68
 Colour  Black Plated
