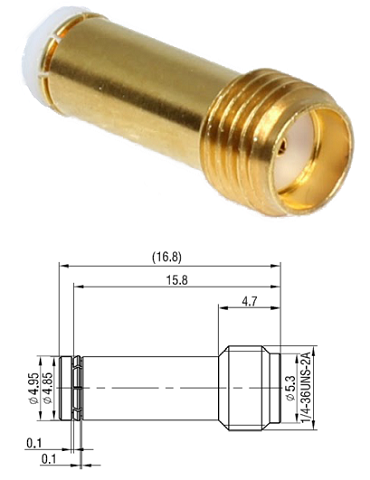

SMA Jack - MBX(C4.9) Plug Adaptor

Materials & Plating

Shell/Body - Brass, Gold Plated

Conductor - Beryllium-Copper, Gold Plated

Insulator - PTFE

Electrical Characteristics

Impedance - 50 ohm

Frequency Range Max. - DC - 3GHz

Dielectric Withstanding Voltage - 1000V (RMS)

Contact Resistance - Centre ≤ 3mΩ, Outer ≤ 2.5mΩ

Insulation Resistance - ≥ 1000mΩ

Mechanical Characteristics

Mating - SMA:1/4-36UNS-2A  C4.9: Snap-on coupling

Durability - ≥ 500 cycles

Environmental Characteristics

Temperature Range: - 55°C to +155°C
