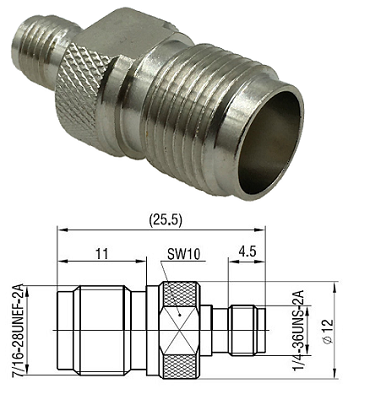

SMA Jack - TNC Jack Adaptor

(Code: 290-5039-070)
Add to Enquiry List
SMA Jack - TNC Jack AdaptorMaterials & Plating
Shell/Body - Brass, Nickel Plated
Contact - QBe2-Y, Gold Plated
Insulator - PTFE

Electrical Characteristics
Impedance - 50 ohm
Frequency Range Max. - DC - 3GHz
Dielectric Withstanding Voltage - 1000V(RMS)
Contact Resistance - Centre ≤ 10mΩ, Outer ≤ 2.5mΩ
Insulation Resistance - ≥ 5000mΩ

Mechanical Characteristics
Mating - SMA:1/4-36UNS-2A TNC:7/16-28UNEF-2A
Durability - ≥ 500 cycles

Environmental Characteristics
Temperature Range: - 55°C to +155°C
