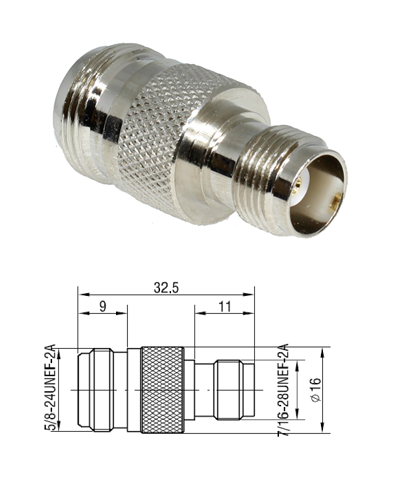

TNC Jack to N Jack Adaptor

(Code: 290-5090-070)
Add to Enquiry List
TNC Jack to N Jack Adaptor

Materials & Plating

Shell/Body - Brass, Nickel Plated

Conductor - Bronze, Gold Plated

Insulator - PTFE

Electrical Characteristics

Impedance - 50 ohm

Frequency Range Max. - DC - 3GHz

Dielectric Withstanding Voltage - 1500V (RMS)

Contact Resistance - Centre ≤ 5mΩ, Outer ≤ 2.5mΩ

Insulation Resistance - ≥ 5000mΩ

Mechanical Characteristics

Mating - N:5/8-24UNEF-2A  TNC: 7/16-28UNEF-2A

Durability - ≥ 500 cycles

Environmental Characteristics

Temperature Range: - 55°C to +155°C
