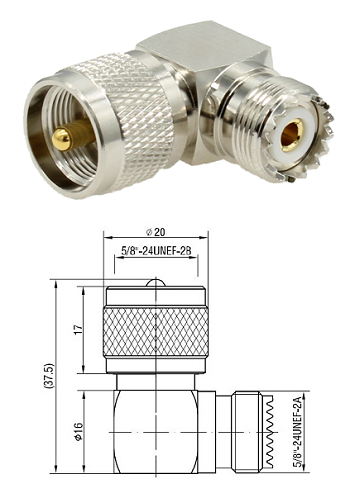

UHF Right-Angled Plug/Jack Adaptor

(Code: 255-8400-070)
Add to Enquiry List
UHF Right-Angled Plug/Jack Adaptor

Materials & Plating

Shell/Body - Brass, Nickel Plated

Conductor - Brass, Gold Plated

Insulator - ABS


Electrical Characteristics

Impedance - 50 ohm

Frequency Range Max. - DC - 2000GHz

Dielectric Withstanding Voltage - 1000V (RMS)

Contact Resistance - Centre ≤ 5mΩ, Outer ≤ 5mΩ

Insulation Resistance - ≥ 5000mΩ


Mechanical Characteristics

Mating - 5/8-24UNEF-2A

Durability - ≥ 500 cycles


Environmental Characteristics

Temperature Range: - 45°C to +85°C
