BNC Bulkhead Crimp Jack RA7000

(Code: 210-2507-003)
 Add to Enquiry List

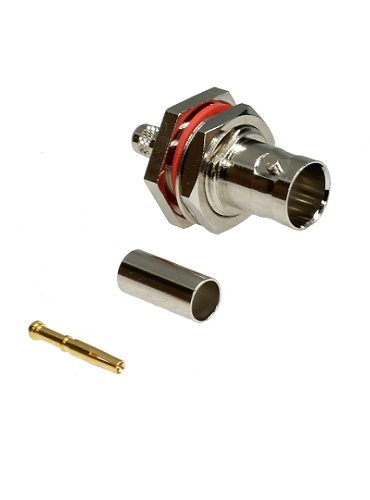

BNC Bulkhead Crimp Jack RA7000

Brand: Amphenol

Model: B6421A1-003-ND3G-75



Material & Plating

Housing - Brass, Nickel Plated

Body - Brass, Nickel Plated

Insulator - DELRIN,

Natural Barrel - Brass, Nickel Plated

Gasket - Rubber, Red

Lock Washer - Brass, Nickel Plated

Hex Nut - Brass, Nickel Plated

Contact Pin - Phosphor Bronze, Gold Plated

Sleeve - DELRIN, Natural

Ferrule - JIS, Nickel Plated



Assembly

Pin: 1.46 mm hex

Outer: 5.18 mm hex
