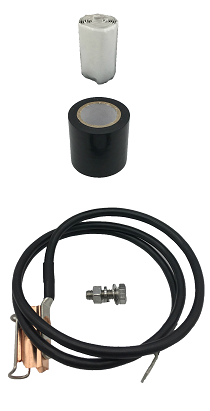

Grounding Kit 1/2 (Spring Type)

(Code: 420-GK-12)
 Add to Enquiry List
Grounding Kit 1/2 (Spring Type)

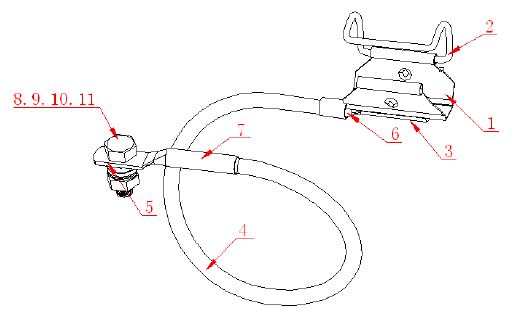

Product List
No Name Tape Quantity Note
1 Ground Strap 1/2" 1 pcs 0.5mm T2 Copper
2 Jump Ring 1/2" 1 pcs SUS304
3 Copper Bolt φ6×6 2 pcs T2 Copper
4 Cable 16mm 2BV 1 pcs
5 Lug 16mm2-M8 One Holes 1 pcs T2 Copper
6 Lug 16mm2-M6 Two Holes 1 pcs T2 Copper
7 Hot Shrink Holes φ12×28 1 pcs
8 Bolt M8×25 1 pcs SUS304
9 Nut M8 1 pcs SUS304
10 Washer φ8 1 pcs SUS304
11 Spring Washer φ8 1 pcs SUS304
12 Plaster 1 pcs
13 Tape 1 pcs


Basic Capability
1. Touch Resistance - ≤ 10 mΩ;
2. Insulation Resistance -  ≥ 500MΩ;
3. Resists Trike Electricity - ≥50 KA
