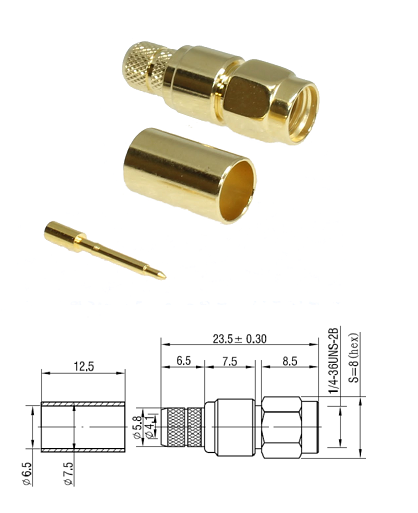

SMA Crimp Plug LMR240

Materials & Plating

Shell/Body - Brass, Gold Plated

Conductor - Brass, Gold Plated

Insulator - PTFE

Crimp Ferrule - Brass, Gold Plated

Electrical Characteristics

Impedance - 50 ohm

Frequency Range Max. - DC -12GHz

Dielectric Withstanding Voltage - 1000V (RMS)

Mechanical Characteristics

Mating -  1/4-36UNS-2B

Durability - ≥ 500 cycles

Environmental Characteristics

Temperature Range: - 55°C to +155°C

Assembly

Pin: 1.72 mm hex

Outer: 6.48 mm hex
