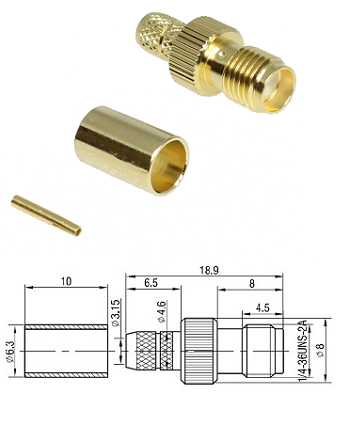

SMA Crimp Jack RG58, LMR195

(Code: 214-2058S-070)
Add to Enquiry List
SMA Crimp Jack RG58, LMR195

Materials & Plating

Shell/Body - Brass, Gold Plated

Conductor - Beryllium, Gold Plated

Insulator - PTFE

Crimp Ferrule - Brass, Gold plated

Electrical Characteristics

Impedance - 50 ohm

Frequency Range Max. - DC - 3GHz

Dielectric Withstanding Voltage - 1000V (RMS)

Contact Resistance - Centre ≤ 3mΩ, Outer ≤ 2mΩ

Insulation Resistance - ≥ 1000mΩ

Mechanical Characteristics

Mating - 1/4-36UNS-2A

Durability - ≥ 500 cycles

Environmental Characteristics

Temperature Range: - 55°C to +155°C

Assembly:

Pin: Solder

Outer: 5.41 mm hex
