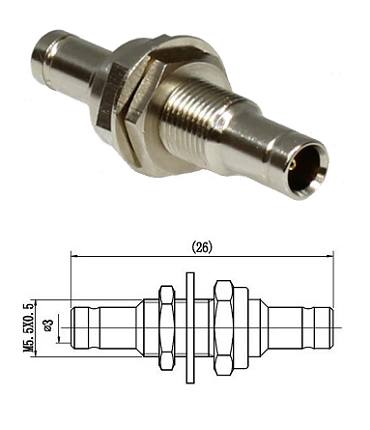

1.0/2.3 Bulkhead Jack/Jack Adaptor

(Code: 205-8500-088)
 Add to Enquiry List
1.0/2.3 Bulkhead Jack/Jack Adaptor

Materials & Plating

Body - Brass, Nickel Plated

Center Conductor -Tin-phosphor, Gold Plated

Insulator - PTFE

Others - Brass, Nickel Plated

Electrical Characteristics

Impedance - 50 ohm

VSWR - ≤ 1.20 (DC-3G)

Dielectric Withstanding Voltage - 750V

Insulation Resistance - ≥ 5000mΩ

Contact Resistance - Centre ≤ 3mΩ, Outer ≤ 6mΩ



Mechanical Characteristics

Durability - ≥ 500  mating cycles



Environmental Characteristics

Temperature Range: - 40°C to +80°C
