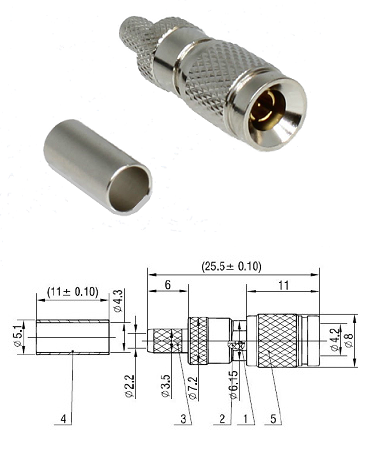

1.0/2.3 Crimp Plug BT3002/SYV-75-2-2 (Solder Pin)

Materials & Plating

Shell/Body - Brass, Nickel Plated

Conductor - Brass, Gold Plated

Insulator - PTFE

Crimp Ferrule - Brass, Nickel Plated



Electrical Characteristics

Impedance - 75 ohm

Frequency Range Max. - DC - 2GHz

Dielectric Withstanding Voltage - 750V (RMS)

Contact Resistance - Centre conductor 4mΩ, Outer conductor 2.5mΩ

Insulation Resistance -  ≥1000MΩ​​​​​​​​​​​​​​



Mechanical Characteristics

Mating - Snap-on coupling

Durability - 500 cycles



Environmental Characteristics

Temperature Range: - 40°C to +85°C



Assembly:

Pin: Solder

Outer: 4.52 mm hex
