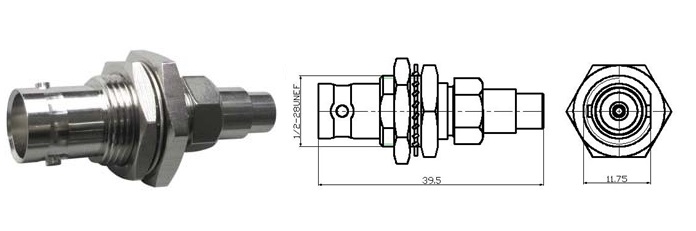

BNC Bulkhead Jack - IDC In Line

(Code: 261-1902-069)
Speed :
Wire Size :
Add to Enquiry List
BNC Bulkhead Jack - IDC In Line
Electrical Data
Matching Impedance 75 ohm unbalanced coaxial to 120 ohm balanced twisted pair
Bit Rates 2Mbit/s,8Mbit/s and 34Mbit/s as ITU-T Recommendation G 703 Line Code
Return Loss 2Mbit/s and 8Mbits as per G.703 requirements
Insertion Loss <0.9dB for 2Mbit/s service (51kHz to 10MHz)
Cross Talk >60dB from 51kHz to 10MHz between two baluns mounted 15mm apart
Pulse Shape 2Mbit/s,8Mbit/s and 34Mbit/s as per G.703
Material Data
Coax Connector Outer Contact Brass. Finish Cu/Ni/Au Cu/Ni
Coax Connector Body Brass. Finish Cu/Ni
Coax Connector Insulator PTFE
Coax Connector Inner Contact Female: Brass or CuPh. Finish Cu/Ni/Au
Balun Body & Rear Tube Balun Brass. Finish Cu/Ni
Grounding Ring Brass. Finish Cu/Ni
IDC Contacts CuSn6. Finish CuSnZn
Twisted Pair Cable Details
Cable Wire Size 0.5mm (AWG 24) to 0.65mm (AWG 22) conductor diameter, STP or UTP
Insulation diameter from 0.7mm to 1.5mm
Cable Entry Diameter 5.0mm
Environmental Data
Working Temperature -10 C to 75 C







































The correct selection of the balun to match the cable conductor size is imperative to the reliability of the product.
Customized cable size available upon request.
