100W Dummy Load (DCHz, N-Male)

(Code: MTL-100-3G-NM)
 Add to Enquiry List

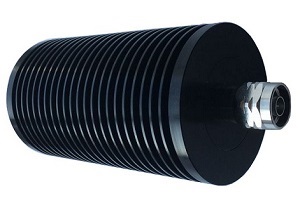

100W Dummy Load (DCHz, N-Male)

Features
• Wide Frequency Band DC-3GHz
•  2G/3G/4G/LTE Coverage
• Low VSWR
• Widely used for In-building Solutions

 Technical & Mechanical Specifications
 Model No.  MTL-100-3G-NM
 Frequency (GHz)  DC-3GHz
 VSWR  ≤1.20
 Average Power(W)  100
 Impedance  50 ohm
 Connector  N-male
 Color  Black
 Temp(deg)  -40~+80
 Relatively Humidity  5%-9%
 Weight(kg)  0.90

Drawing
