1.6/5.6 Bulkhead Jack BT3002

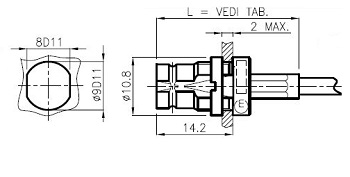

Drawing:

L= 26.5 mm



Materials & Plating

Bodies, Nuts, Sleeves - CW 614 N as per UNI EN 12164

Male Inner Contacts - CW 614 N as per UNI EN 12164

Female Inner Contacts -  Beryllium Copper

Resilient Auter Plug Contacts - Beryllium Copper

Insulator - PTFE (Teflon)



Electrical Characteristics

Impedance - 75 ohm

Frequency Range - 4 GHz

Contact Resistance - Centre (initial) < 4m, Outer < 2m

Contact Resistance - Centre (after conditioning) initial + 4m, Outer initial + 2m

Insulation Resistance - >10 GOhm (initial), >1 MOhm  (after Conditioning)



Mechanical Characteristics

Mating and Dimensions - as per CEI CECC EN 122 240

Durability - >500 cycles



Environmental Characteristics

Temperature Range: - 40°C to +85°C



Assembly

Pin: 1.2 sq

Outer: 4.06 mm hex
