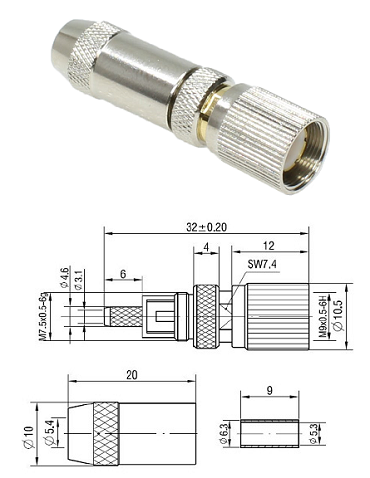

1.6/5.6 Crimp Plug 3C-2V, SYV-75-3-1 (Solder/Crimp/Screw Cover)

Materials & Plating

Shell/Body - Brass/Phosphor Bronze, Nickel Plated

Contact Socket - Brass, Gold Plated

Insulator - PTFE

Electrical Characteristics

Impedance - 75 ohm

Frequency Range Max. - DC - 1GHz

Dielectric Withstanding Voltage - 1000V(RMS)

Contact Resistance - Centre ≤ 4mΩ, Outer ≤ 2mΩ

Insulation Resistance - ≥ 1000mΩ

Mechanical Characteristics

Mating - M9x0.5-6H

Durability - ≥ 500 cycles

Environmental Characteristics

Temperature Range: - 40°C to +80°C

Assembly

Pin: Solder

Outer: 5.41 mm hex
